Sam's Club often uses half pallet bins for palletized sales of large-packaged goods. This type of packaging ensures transportation stability while also adapting to warehousing and in-store display needs. Below are the core design and specification points for two types of half pallet bins:

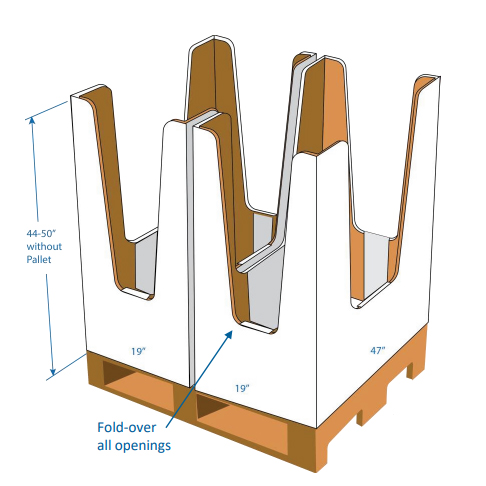

1. Comfort Mats Half Pallet Bin

Suitable for cushioning products (e.g., comfort mats), its structure and parameters are as follows:

- Appearance & Structure:

Adopts a "W-shaped" inner slot design; all openings must be fold-sealed. Overall dimensions (without pallet): 44-50 inches in height, 47 inches in width, 19 inches in single-slot depth.

- Dimension Details (Front/Side Views):

  - Front: 19 inches wide; slot opening diameter 2 inches, slot depth 5 inches;

  - Side: 39 inches wide; bottom curve diameter 2 inches.

- Packaging Material Requirements:

  - Bin body: EB-flute corrugated paper, ECT strength 51, bursting strength 350;

  - Shipping caps and shroud: C-flute corrugated paper, ECT strength 44, bursting strength 275.

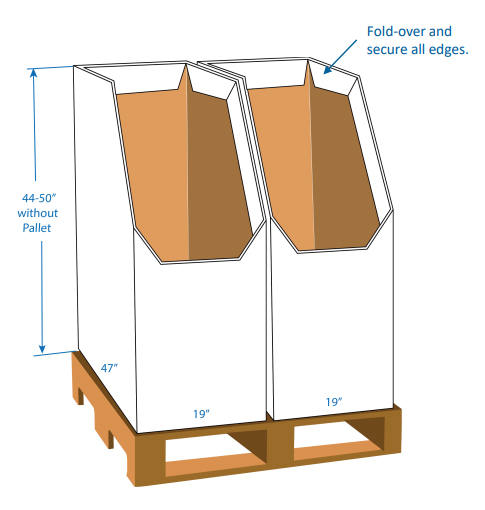

2. Comforter BIAB Half Pallet Bin

Suitable for "Bag-In-A-Box (BIAB)" packaging of comforter products, with the following features:

- Appearance & Structure:

Dual-slot design; all edges must be fold-reinforced and sealed. Overall dimensions (without pallet): 44-50 inches in height, 47 inches in width, 19 inches in single-slot depth.

  - Front: 19 inches wide; slot height 22 inches;

  - Side: 47 inches wide; slot height 22 inches.

- Packaging Material Requirements: Same as the Comfort Mats version (EB-flute for the bin body, C-flute for caps and shroud).

3. General Palletizing & Transportation Requirements

Regardless of the half pallet bin type, the following must be followed:

1. Dedicated caps and shroud must be added during transportation.

For more questions about Sam's Club packaging solutions, please contact CTK!
